Floorplan - 2017 Jayco Octane T30F





- Our Price: $23,995
- List Price: $27,995
- Discount: $4,000
- Contact Sales
- Make Offer
- Request Info
-
Price Drop Alert
-
Sleeps 8
-
1 Slides
-
Two Entry/Exit DoorsFront Bedroom
-
35ft Long
-
8,185 lbs
-
Godiva, Mojave

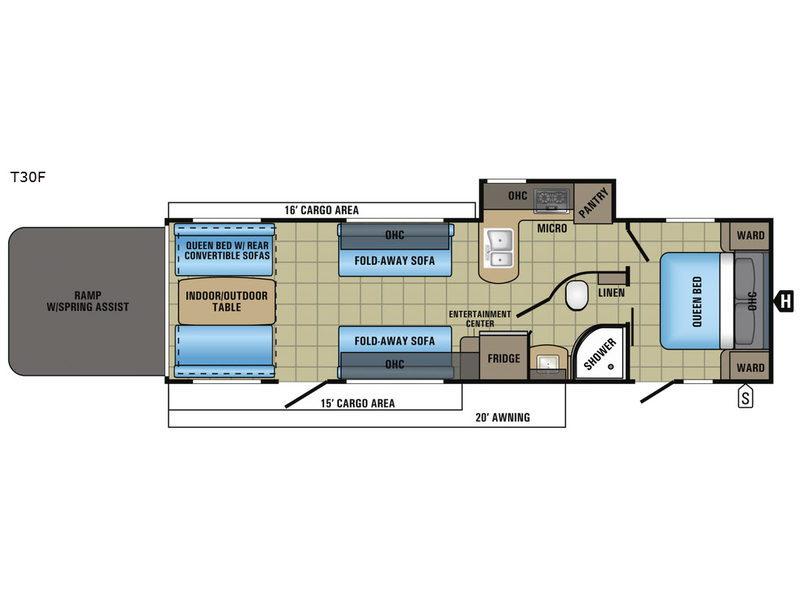

T30F Floorplan
Specifications
Sleeps | 8 | Slides | 1 |
Length | 35 ft 4 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 6 in | Int Height | 7 ft 10 in |
Interior Color | Godiva, Mojave | Hitch Weight | 1165 lbs |
GVWR | 12250 lbs | Dry Weight | 8185 lbs |
Cargo Capacity | 4065 lbs | Fresh Water Capacity | 48 gals |
Grey Water Capacity | 45.4 gals | Black Water Capacity | 45.4 gals |
Number Of Bunks | 1 | Available Beds | Queen |
Refrigerator Type | 2 door | Refrigerator Size | 8 cu ft |
Cooktop Burners | 2 | Number of Awnings | 1 |
Garage Size | 16 ft | LP Tank Capacity | 30 |
Water Heater Capacity | 6 gal | Awning Info | 20' electric |
Axle Count | 2 | Number of LP Tanks | 2 |
Shower Type | Radius | Electrical Service | 30 amp |
VIN | 1UJBJSBS8H1VF0077 |
Description
With 15' to 16' of cargo space you can easily take a couple of off-road toys for your next weekend trip in this Octane T30F toy hauler travel trailer by Jayco! This model also features a single slide out, two entry doors, and a front bedroom.
In the cargo area you will find a queen bed above the two convertible sofas. Also, there is an indoor/outdoor table between the sofas where you can enjoy your meals during the day, and at night you can use this area for additional sleeping space.
Moving forward, you walk through two opposing fold-away sofas and overhead cabinets. Along the curb side wall of the trailer you can choose two lounge chairs, or the dinette table option in place of the fold-away sofa.
In the kitchen area there is a slide out along the road side with a l-shaped counter including a double kitchen sink, two burner range, microwave, overhead cabinets where you can easily store dishes, and a pantry for your dry and canned goods. On the opposite side you will find an entertainment center and a refrigerator.
The bathroom has a sink, medicine cabinet, radius shower, toilet, and linen cabinet.
You can enter into the front bedroom from the sliding door which separates the bathroom from the bedroom or from the hallway. In the bedroom find a queen bed, two wardrobes, and overhead cabinets. There is also a private entry/exit door from the bedroom which leads outside.
Outdoors you will find exterior storage and a 20' awning, plus so much more!
Features
Standard Features (2017)
Customer Value Package (Mandatory)
- 2” block-foam vacuum-bonded and laminated sidewalls
- 102-gallon fresh water capacity
- 102" wide-body construction
- Aluminum rims
- 18-gallons/hour quick-recovery gas/electric water heater
- Oven with 3-burner cooktop
- Microwave oven
- AM/FM/CD/DVD/Bluetooth with (2) interior speakers and (2) exterior marine-grade speakers
- Stainless-steel appliances
- Dinette table
- Digital TV antenna
- Pleated night shades
- Marine toilet
- 2" block-foam floor, vacuum-bonded and laminated
- I-Class cambered structural-steel I-beam frame with integrated A-frame
- Magnum Truss Roof System
- Super Lube axles
- Self-adjusting brakes
- Spare tire and carrier
- RVQ grill hookup
- Diamond-plate rock guard
- Double battery compartment with locking door
- Outside shower
- Black tank flush
- LED taillights
- Bar-lock latches with keyed ramp door locks
- D-rings anchored to steel chassis
- (4) stabilizer jacks
- Exclusive designer exterior graphics package
- Ducted 13,500- or 15,000-BTU A/C
- Matching Aztek Gray radius fiberglass front wrap and ramp door
- Solar prep
- Backup camera prep (in two locations)
- 8 cu. ft. double-door refrigerator
- Rear electric queen beds with rollover sofa, folding armrests, cup holders & LED lights
- Jayco-exclusive residential Simmons mattress
- Upgraded MOR/ryde CRE3000 suspension system
- Triple-tread entrance steps
- Cable and satellite TV hookups
- Dual 30-pound propane bottles
- Retractable screen wall
- Electric patio awning with LED lights
- 3,500-pound electric tongue jack
- 40-gallon fuel station
- Whole-house LED Lighting (interior and exterior)
- Vacuum-bonded, aluminum-framed, fiberglass sidewalls
- Colored fiberglass, radius-profile front wall and ramp door
- Keyed Alike lockable baggage doors, insulated and radius-cornered (one key for ALL doors)
- G20 dark-tinted, safety-glass windows
- Nitrogen-filled radial tires
- 30-amp power service
- Generator prep with 40-gallon fuel tank
- Systems monitor panel
- Water heater bypass system
- Water system winterization kit
- LED exterior lights
- Sani-con turbo macerator prep
- Bourbon Chocolate wood cabinetry
- Ball-bearing drawer guides, 75-pound capacity with full-drawer extension
- 3-burner range with stainless oven
- Residential microwave with range hood
- Deep double-bowl, stainless-steel 50/50 sink with cutting board cover (1)
- Auto-ignition furnace with wall thermostat
- Command center (select models)
- USB charging port
- Vinyl flooring throughout
- Skylight in tub/shower
- Bathroom power vent
- ABS tub/shower surround
- Glass shower door (select models)
- A/C ducts in front bedroom (select models)
- Under-bed storage with gas struts (select models)
- Fold-away sleeper sofas (2) (select models)
- Lighted LED countertop edge
Ramp and Cargo Equipment
- Radius-cornered ramp door, 2,500-pound capacity, 96-inch-wide ramp door opening
- High-intensity LED rear ramp lights (2)
- Spring-assist ramp door with non-skid flooring
- Garage vent ports
- Overhead storage cabinets
- Happi-Jac sofa/bed combo with LED lights and armrest cupholders
- Canadian Standards
- Octane CVP Package - 102" Wide Body Construction, 2" Block Foam Vacuum Bonded and Laminated Sidewalls, Aluminum Rims, 102 Gallon Fresh Water Capacity, 18 Gallon /Hour Quick Recovery Gas/Electric Water Heater, Oven with 3 Burner Cooktop, Microwave, AM/FM/CD/DVD/Bluetooth with (4) Interior Speakers and (2) Exterior Marine Grade Speakers, Stainless Steel Appliances, Dinette Table, Digital TV Antenna, Pleated Night Shades, Marine Toilet, 2" Block Foam Floor Vacuum Bonded and Laminated, I-Class Cambered Structural Steel I-Beam with Integrated A-Frame, Magnum Truss Roof System, Super Lube Axles, Self Adjusting Brakes, Spare Tire and Carrier, RVQ Grill Hookup, Diamond Plate Rock Guard, Double Battery Tray, Outside Shower, Black Tank Flush, LED Taillights, Bar-Lock Latches with Keyed Ramp Door Locks, D-Rings Anchored to Steel Chassis, (4) Stabilizer Jacks, Exclusive Designer Exterior Graphics Package, Ducted 13.5K BTU A/C, Matching Aztek Gray Radius Fiberglass Front Wrap and Ramp Door, Jayco Exclusive Residential Simmons Mattress, Upgraded Mor/ryde CRE 3000 Suspension System, Triple Tread Entrance Steps, Cable and Satellite Hookups, Solar Prep, Back Up Camera Prep, Double 30 lb. Propane Bottles, Rear Electric Queen Beds with Rollover Sofa, Retractable Screen Wall, Electric Patio Awning with LED Lights, 3,500 lb. Electric Tongue Jack, 40 Gallon Fuel Station, 8 cu. ft. Double Door Refrigerator
- Octane CVP Package with 15,000 BTU A/C
- 4000 Generator
- 32" TV
- Fold-Away Dinette ILO Sofa (Door Side) (T30F, T31B, T32J)
- Free Standing Table with (2) Chairs ILO Sofa (Door Side) (T30F, T31B, T32J)
- 50 AMP Service with 2nd A/C PREP
- 2nd 13,500 A/C in Bedroom
- Heated Enclosed Underbelly
- Carpet in Cargo Area
- ToyLok, Retractable Security Cable
- Party Deck with "Quick Set" Folding Rails
- Sani-Con® Turbo Waste Management System
- Electric Auto-Leveling System
- Mandatory: Goodyear Tire Upgrade (Made in the USA)
See us for a complete list of features and available options!
All features and specifications are subject to change.
